Subminiature Tension or Compression Load Cell, 0.75" to 1" Diameter
|
• |
High Accuracy |
|
• |
5 Point Calibration NIST Traceable Calibration Included |
|
• |
Small Footprint |
|
• |
All Stainless Steel Construction |
|
• |
Models Available from 1kg to 1,000 lb. |
|
• |
59 kOhm Shunt Cal Data Provided |
|
|
|

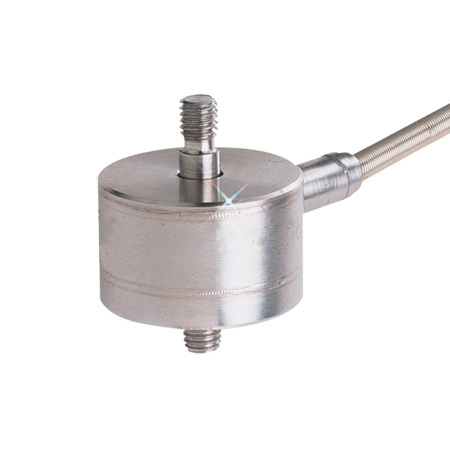

Small in size and capable of providing highly accurate readings, the LCFD Series miniature load cells are precision subminiature load cells for industrial applications requiring a small size and high accuracy. They are all stainless steel, measure both tension and compression loads and have male thread studs for load attachment. The exclusive internal design provides superior long term stability and minimizes the effects of small off-axis loads. Compatible Meters: DP41-W, DP41-S, DP25-S
SPECIFICATIONS
Excitation:
≤10 lb/50 N: 5 Vdc
≥25 lb/100 N: 10 Vdc
Output:
2.2 lb/10 N: 1.5 mV/V (nom)
≥5 lb/20 N: 2 mV/V (nom)
Accuracy (Linearity and Hysteresis Combined):
≤100 lb/500 N: ±0.15% FSO
≥250 lb/1000 N: ±0.20% FSO
Repeatability:
≤2.2 lb: ± 0.15% FSO
≥5 lb/10 N: 0.20% FSO
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: ±0.009% FSO/°C
Zero: ±0.009% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 Ω minimum
Construction: Stainless steel
Electrical Connection: 1.5 m (5') 4-conductor, shielded cable
≤10 lb/50 N: SS overbraided PTFE with temperature compensation board
Protection Class: IP65 |
