DFG-RS3
| • |
Interchangeable Force and Torque Sensors
|
| • |
High Speed 2000 Hz Sampling rate
|
| • |
Ultra-Compact Size
|
| • |
4 Selectable Units of Measure
|
| • |
Load Cells Available in Ranges from 0.25 to 10,000 lb
|
| • |
Torque Sensors for 10 oz-in to 100 lb-in Ranges
|
| • |
USB Data Output
|
| • |
Programmable SetPoints with Pass/Fail Indicators
|
| • |
Large Backlit Graphics Display
|
| • |
Live Load Bargraph with Set Point Markers
|
| • |
Peak Readings and Set Points Always Displayed
|
|

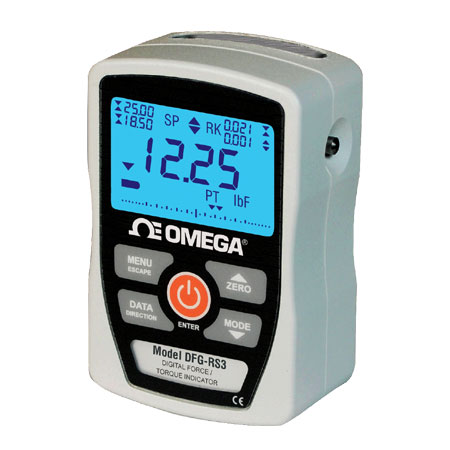

The DFG-RS3 is an economical digital force and torque indicator that works with a wide variety of plug and play force and torque sensors. All calibration and configuration data is stored in the sensors smart connector instead of the indicator making the sensors truly interchangeable. In addition all of the remote sensors are also fully compatible with the advanced DFG-RS5 force/torque indicators. A variety of interchangeable force and torque sensors are available for use with the RS3 series. Sensors are available in a range of capacities from 0.25 to 10,000 pounds force for load cells and 10 oz-in to 100 lb-in for torque sensors. In addition to the pre-calibrated sensors the DFG-RSA programmable adapter allows the end user to calibrate most bridge type force or torque sensor with a 1 to 3 mV/V full scale output to work with the DFG-RS3. The RS3 series also shares menu structure and most specifications with the DFG35/HHTQ35 force and torques gauges. A backlit graphic LCD displays large characters and a menu is available to access the gauges features and configurable parameters. Units also have a USB output for data collection and setpoint indicators for pass-fail testing.
SPECIFICATIONS
Accuracy: 0.2% of full scale + sensor
Power: Rechargeable battery or AC using adapter (batteries and adapter included)
Battery Life: Up to 7 hours continuous use with backlight on or 24 hours with backlight off
Low Battery: Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Configurable Settings: Digital filters, USB output, automatic Shutoff, default settings, key tones, audio alarms , calibration
USB Output: Individual data points by pressing the “DATA” key. Configurable to 115,200 baud
Operating Temperature: 4 to 38°C (40 to 100°F)
Humidity: 96% RH non-condensing
Dimensions: 99.1 H x 64.3 W x 38.1 mm D (3.90 x 2.53 x 1.50")
Weight: 0.3 kg (0.7 lb)
SENSOR COMMON SPECIFICATIONS
Operating Temperature: 5 to 38°C (40 to 100°F)
Operating Humidity: 96% non-condensing maximum
LOAD CELLS
Safe Overload: 150% of full scale (200% for RLC03-025, RLC03-2 and RLC04 series)
TORQUE SENSORS
Safe Overload: 150% of full scale (300% for RTQ50-10Z, RTQ50-50Z)
Chuck Opening: RTQ50-10Z and RTQ50-50Z – 0.062 to 0.375" RTQ50-12, RTQ50-100 – 0.078 to 0.5" |
