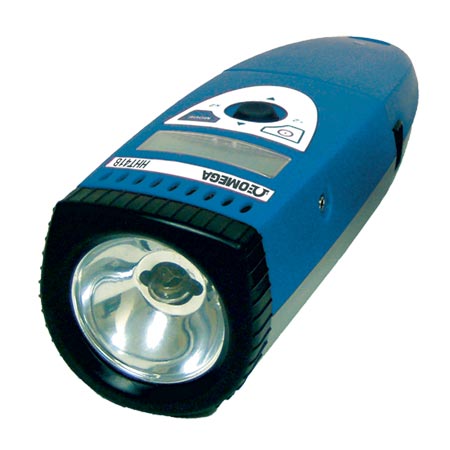

HHT41B

OMEGA's HHT41B set the industrial standard for high-intensity, multifunction, ultra-compact, xenon stroboscopes. It features a removable, rechargeable battery pack. Stop-action and slowmotion inspections are made easy with the one-touch, joystick-type tuning button. Additional features include rapid x2 and ÷2 of current flash rate, tachometer mode with external trigger, and memory recall functions. The HHT41B can even be operated "hands-free" with our standard tripod mounting bushing. SPECIFICATIONS Display: 6-digit alphanumeric backlit LCD, 7.6 mm (0.3") digits Light Power: 150 mJ/flash, 1100 LUX as bright as 10 W units Flash Duration: 10 to 30 µs typical Battery: Rechargeable battery pack (included) Nickel-Metal Hydride Recharge Cycle: Fully recharges in 4 to 5 hours Run Time: 100 minutes typical at 1800 fpm with fully charged batteries Adjustment: 4-quadrant, pressure-sensitive joystick button adjusts flash rate, x2 and ÷2 Power: Removable 6V rechargeable battery pack with integral charge control electronics, included with all units Weight: 0.63 kg (1.4 lb), including battery Internal Mode Flash Range: 100 to 12,500 fpm Resolution: 0.1 FPM Accuracy: ±0.5 FPM or ±0.01% of reading Update Rate: Instantaneous External Mode Range and Display: 5 to 12,500 fpm Update Rate: 1 second typical fpm Accuracy: ±0.1 fpm or ±0.01 of reading Trigger-to-Flash Delay: < 5 µs External Input: 0 to 5V, 5 TTL compatible (+12 Vp max), 20 ìs min pulse width; positive edge triggered Tachometer Mode Range: 5 to 250,000 rpm Accuracy: ± 0.01% or 0.1 rpm Update Rate: 1 second typical External Input: 0 to 5V TTL compatible (+12 Vp max) 20 ìs min pulse width; positive edge triggered
