Pressure Transmitter, Industrial, Rangeable

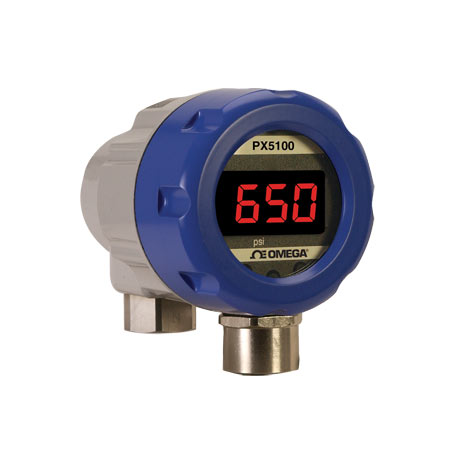

PX5100 Rangeable Pressure Transmitter

•	Compact Size
•	NEMA 4X (IP65) Environmental Rating
•	Backlit Display for Easy Reading
•	Display Rotates in Increments to Fit Location
•	All Stainless Steel Wetted Parts
•	Quick Ranging with Internal Push-Buttons
•	Scale to Display in Engineering Units
•	MIN/MAX and HOLD Functions
•	Program Lock Function
•	High Overpressure
•	High Life Cycles
•	Key Lock Function The OMEGA PX5100 is a compact, industrial, rangeable, pressure transmitter ideal for monitoring pressures in process automation, hydraulic systems, compressors, pumps and in tank level applications where consistent, reliable pressure measurement is essential. The PX5100 has rugged field-proven thin film sensor technology and can monitor a wide variety of wet or dry media. Available in ranges from 0-50 to 0-7500 psi and compound ranges up to -15/50 psi, this versatile transmitter includes min, max to record high and low pressure events and hold feature. A rugged aluminum NEMA 4X (IP65) enclosure measures only 2.65" in diameter and incorporates a backlit LCD display for local reading. The output is a two-wire configurable 4 to 20 mA signal that can be adjusted to re-range the transmitter or “tare” unwanted fluid head preloads. Rangeability for zero and span are from -10% to 110% FS URL (Upper Range Limit). This means a 100 psi transducer can have the zero set between -10 psi to FS 110 psi. For example zero could be set for 30 psi and maximum 90 psi so the output would be 4 mA at 30 psi, midpoint 12 mA would be 60 psi and 20 mA would be 90 psi. SPECIFICATIONS Output: 4 to 20 mAdc (2-wire) Supply Voltage: 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) Insulation Resistance: 50 Vdc (>100 M Ω) Rangeability/Adjustments:     Zero: -10 to 110% FS     Span: -10 to 110% FS Accuracy: ±0.25% FS URL(Upper Range Limit) @23°C includes linearity, hysteresis and repeatability Note: Accuracy and output resolution based upon FS (URL) value. Stability: ±0.25% FS/year Response Time: 30 ms (adjustable) Output Resolution: 0.1% FS (URL) Display: 4 digit, 10 mm LCD with Red backlight Display Accuracy: ±0.25% FS (URL) + 1 digit Storage Temperature: -20 to 70°C (-4 to 158°F) Operating Temperature: -10 to 60°C (14 to 140°F) Compensated Temperature: -10 to 60°C (14 to 140°F) Temperature Effects (Over Comp Range): ±0.02% FS (URL)/°C (from 23°C reference) Overpressure (FS): ≤1500 psi Proof: 200%     Burst: 500%     Proof: 3000, 5000 psi     Proof: 200%     Burst: 500% 7500 psi Proof: 120%     Burst: 150% Vibration: 5 g's 150 Hz Shock: 10 g's 16 ms Pressure Connection: ¼NPT female Electrical Connection: ½NPT female conduit fitting Environmental Rating: NEMA 4X (IP65) CE Compliance: EN 613261 199, A1/1998, A2/2001 heavy industrial Media: Fluids and gasses compatible with 316SS and 17-4 pH SS Weight: Approx 454 g (1 lb)
