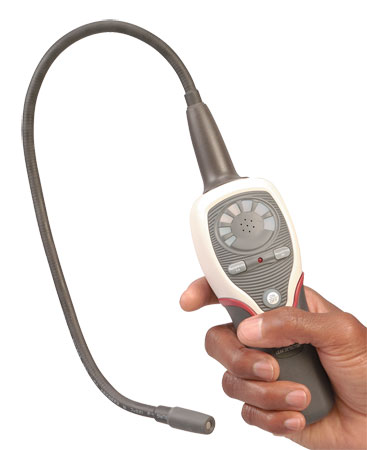

| Refrigerant Leak Detector LDH-380 |
|
LDH-380
| • |
Microprocessor Control with Advanced Digital Signal Processing
|
| • |
Multi-Color Visual Display
|
| • |
High-Low Leak Sensitivity Selector
|
| • |
Low-Battery Indication
|
| • |
Semiconductor Gas Sensor
|
| • |
Detection of R-134A, R-404A, R-410A, R-407C and R22 Freon Gases
|
| • |
Carrying Case Included
|
| • |
39 cm (15") Flexible Stainless Steel Probe
|
| • |
Reference Leak Source Included
|
| • |
Ambient Concentration Reset
|
|
 |
The LDH-380 refrigerant leakage detector is the perfect tool for maintaining the air-condition or a cooling system with compressor and refrigerant. This unit uses a newly developed semi-conductor sensor which is extremely sensitive to variety of general refrigerants.
SPECIFICATIONS
Detectable Gases: R-134A, R-404A, R-407C, R-410A, R-22, etc.
Sensitivity H L: R-22, 134A 6g/year 30g/year; R-404A, 407C, 410A 8g/year 40g/year
Alarm Method: Buzzer, tri-color LED bar indicator
Power Usage: 4 "AA" size (6 Vdc) alkaline batteries (included)
Battery Life: Approximately 40 hours normal use
Snake Tube Length: 39 cm (15")
Auto Power OFF: 10 minutes
Warm-Up Time: Approximately 90 sec Operating Temperature and Humidity: 0 to 40°C (32 to 104°F), <80% RH Storage Temperature
and Humidity: -10 to 60°C (14 to 140°F), <70% RH
Altitude: < 2000 m (6500')
Dimensions: 173 x 66 x 56 mm (6.8 x 2.6 x 2.2")
Weight: Approximately 400 g (14 oz) | | |
|
|
|
|
