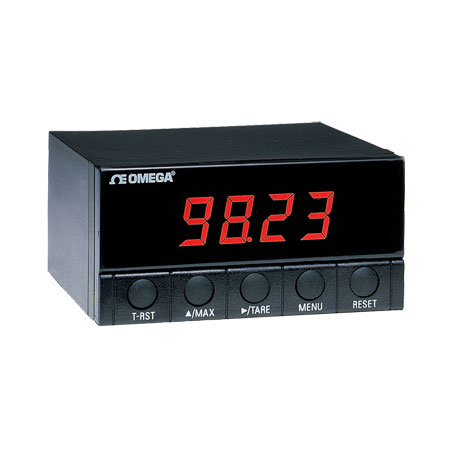

DP24-E

1/8 DIN Economical Process Meter

The DP24 Series is an economical, user-friendly panel meter which can be scaled without the use of an electronic calibrator. The DP24-E accepts voltage (0 to 5, 1 to 5 and 0 to 10 Vdc) or current (4 to 20 mA) transducers. After scaling, the front keypad can be locked out to avoid unauthorized changes, and an optional bezel without "buttonholes" can be snapped into place. Specifications Accuracy: @ 25°C (77°F) ±0.05 Rdg + 1 LSD Input: 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 4 to 20 mA (bi-directional) Operating Temp: 0 to 50°C (32 to 122°F) Storage Temp: -40 to 85°C (-40 to 185°F) Temp. Coefficient: 50 ppm/°C Display: 4-digit, red or green LED, 14.2 mm H (0.56") Display Range: -1999 to 9999 Relative Humidity: 95% @ 40°C (104°F), non-condensing Connections: Screw terminals External Features: Tare, reset tare, display hold Power Requirements Voltage: 115 Vac ±10% standard (230 Vac or 10 to 32 Vdc optional) Frequency: 50 or 60 Hz Power Consumption: 3.5 watts max. Mechanical Specifications Dimensions: 96 W x 48 H x 104 mm D (3.78 x 1.89 x 4.10in.) Panel Cutout: 1/8 DIN, 92 W x 45 mm H (3.62 x 1.77in.) Depth Behind Panel: 100 mm (3.94in.) Weight: 312 g (11 oz)
