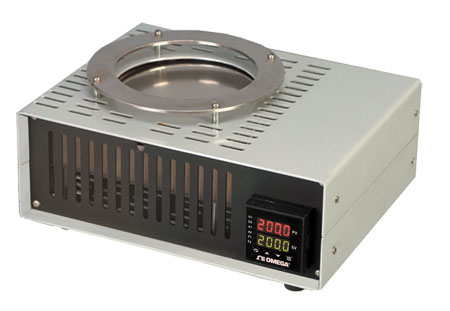

| Surface Probe Calibrator (RP) CL1600 |
|
| • |
Temperature Range 35 to 450°C (95 to 842°F)
|
| • |
Highly Stable
|
| • |
Fast Heat Up
|
| • |
Built-In Digital PID Auto-Tune Temperature Controller with Temperature Readout
|
| • |
RS232 Output Standard
|
| • |
NIST Traceable Calibration Certificate Included |
±0.4 @100°C
±0.8 @ 200°C
±1.2 @ 300°C |
|
±1.4 @ 400°C
±1.7 @ 450°C | Display Accuracy: ± 2.0°C
Readout: °C or °F switchable
Ambient Conditions: 35 to 45°C (77 to 113°F), 0 to 90 RH non-condensing
Heating Time: 30 minutes from 25 to 450°C (77 to 842°F)
Cooling Time: 90 minutes
Stabilization Time: 15 minutes
Temperature Sensor: Class A 100 Ω RTD
Power: 115 or 230 Vac
Dimensions: 216 W x 279 L x 102 mm H (8.5 x 11 x 4")
Weight: 3.4 kg (7.5 lb)
|
|
