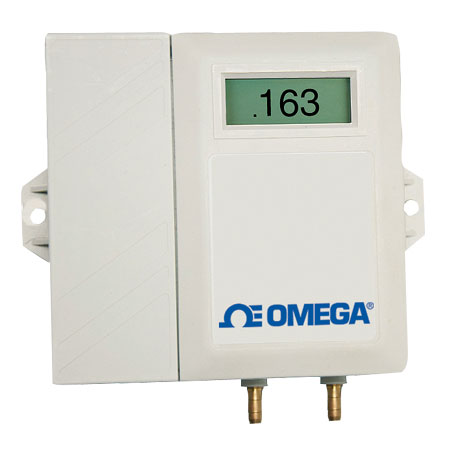

Rangeable Very Low Differential Pressure Transmitter

The PX2600 transducers can output either static (gage) pressure or differential pressure. Standard features include range selection, output type and field zeroing. The 4-digit display can also be set to read either static pressure or differential pressure. A rugged stainless steel sensor offers excellent accuracy, stability, and low long term drift and the durable fire retardant glass filled polyester case provide long life in building management environments. A high accuracy microprocessor assures range to range accuracy and performance.

SPECIFICATIONS
Accuracy (All Ranges): ±1.0% RSS full scale (RSS includes lineratiy, hysteresis and repeatability) (calibrated in verticle 0g position)
Position Effect: Zero offset 0.2% full scale/g
Operating Temperature: 0 to 50°C (32 to 122°F)
Compensated Range: 0 to 50°C (32 to 122°F)
Zero/Span Shift (Over Compensated Range): 3% full scale
Maximum Line Pressure: 10 psi
Overpressure: Up to 10 psi (range dependent)
Long Term Stability: 2.0%/full scale/year
Zero and Span: Pushbutton selection
Excitation (Voltage Out): 13 to 30 Vdc @ 5 mA (typical)/18 to 28 Vac, 40 mA (typical)
    Field Selectable Voltage: 0 to 5 Vdc, 0 to 10 Vdc 3-wire system
    Output Impedance: 300 Ω
Excitation (Current Out): 24 Vdc
Field Selectable Current: 4 to 20 mA 2-wire system (0 to 800 Ω load)
    Bi-Directional Voltage at Zero: 2.5V for 0 to 5 Vdc or 5V for 0 to 10 Vdc
    Bi-Directional Current at Zero: 12 mA
    Full Scale Span Setting: ±1%
Electrical Connection: Removeable screw terminal block
Pressure Connection: ³/₁₆ OD barbed brass tube fittings
Case: Fire-retardant glass filled polyester (UL94 V-O approved)
Mounting: Two external screw holes (verticle position)
Pressure Media: Air or similar non-conductive gas
Dimensions: 105 L x 108 W x 38 mm diameter (4.15 x 4.75 x 1.5")
Weight: 225 g (8 oz)
