Level Switch Heavy Duty Side-Mounted
|
• |
Rugged Design |
|
• |
Field Serviceable |
|
• |
Allows for Direct Switching |
|
• |
20 Amp Relay |

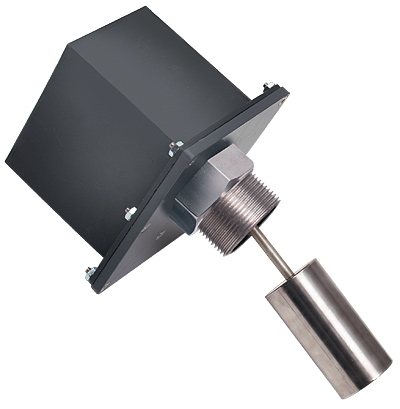

The LV-1301 rugged, side-mounted liquid-level switch can handle enough electrical power to control a pump’s on/off action directly. This makes intermediate relays unnecessary, thereby lowering cost.
The LV-1301’s design allows for disassembly and cleaning after use with liquids containing contaminants or causing residual buildup. Such periodic maintenance helps extend the switch’s service life.
SPECIFICATIONS
Electrical: 20 A @ 125, 250 or 480 Vac, 10 A @ 125 Vac inductive, 1 hp @ 125 Vac, 2 hp @ 250 Vac, ½ A @ 125 Vdc, 0.25 A @ 250 Vdc
Switch Type: SPDT microswitch, screw terminals
Max Operating Pressure: 6.89 bar (100 psig)
Max Operating Temperature: 125°C (257°F)
Wetted Materials: 304 SS, standard
Float Specific Gravity: 0.60
Mounting Box Enclosure: Epoxy, PVC with FKM sealing gasket |
