| Non-Intrusive Sensors LVP51,91,92 |
|

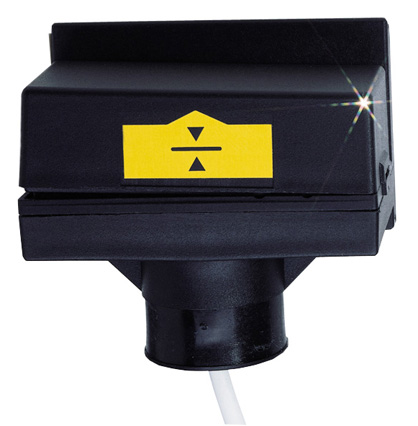

Non-Intrusive RF Capacitance Sensors
|
• |
Detects Liquid Through Plastic or Fiberglass Tank Walls Up to 1" Thickness |
|
• |
1 AMP SPST Relay Output Standard |
|
• |
Sensor Conveniently Slides In and Out of Mounting Bracket In PE or PP |
|
• |
Ideal For Many Ultrapure and Sanitary Applications |
|
• |
Easy Two Step Calibration |
|
• |
Selectable Normally Open or Normally Closed |
OMEGA ® non-intrusive RF capacitance sensors deliver accurate and reliable liquid level detection with an SPST mechanical relay output. A versatile weld-on fitting enables the sensor to be mounted directly to the wall of any standard polyethylene, fiberglass or polypropylene tank. Simply align the fitting with the tank and press it into place. An engineered adhesive holds the fitting during welding and provides a seal between the sensor and the tank wall. OMEGA’s two-step calibration feature ensures the highest level of dielectric sensitivity. |
|
