Thermocouple |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Thermocouple length |
050 |
500mm |
|
100 |
1000mm |
|
150 |
1500mm |
|
200 |
2000mm |
|
|
Plug
see plug page |
ANP |
|
|
ASP |
|
|
W |
|

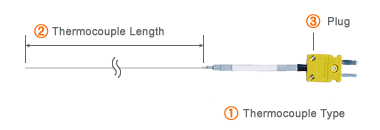

Thermocouple Length
This probe does not incorporate compensating lead wires.
Specifications
|
Tolerance |
±2.5°C (at 100°C) |
|
Response time |
2.0 s |
|
Durability rank |
S |
|
Max. Temp. |
200°C |
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
SF-■
|
Temperature range |
Tolerance (Internal) |
|
-50°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t ≦ 200°C |
±2.5°C |
|
