| Air Temperature Probes Model AT series |
|
|
|
|

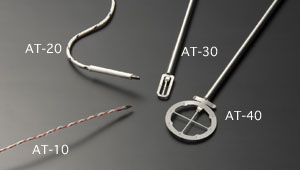

Head Size and Form(Max. Temp) |
10 |
φ1.5mm Teflon insulated thermocouple(200°C) |
|
20 |
φ3mm Glass fiber insulated thermocouple(300°C) |
|
30 |
5 × 12mm Head(500°C) |
|
40 |
φ20mm Head(300°C) |
|
|
Thermocouple |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Length |
030 |
300mm |
|
050 |
500mm |
|
100 |
1000mm |
|
200 |
2000mm |
|
|
Grip Type |
0 |
No Grip |
|
1 |
Grip (AT-30,AT-40 only) |
|
|
Cable Type
see cable page |
TS |
For Non Grip type |
|
TC |
For Standard Grip type |
|
|
Cable Length |
1 |
1m |
|
1.5 |
1.5m |
|
2 |
2m |
|
2.5 |
2.5m |
|
… |
…… |
|
|
Plug
see plug page |
ANP |
|
|
ASP |
|
|
W |
|

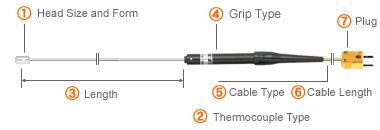

Head Size and Form
Length
|
|
AT-10 |
AT-20 |
AT-30 |
AT-40 |
|
030 |
300mm |
300mm |
300mm |
300mm |
|
050 |
500mm |
500mm |
500mm |
500mm |
|
100 |
— |
1000mm |
1000mm |
1000mm |
|
030 |
— |
2000mm |
— |
— |
Specifications
|
Tolerance |
±2.5°C (at 100°C) |
|
Response time |
0.3 s |
|
Durability rank |
S |
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
AT-10■
|
Temperature range |
Tolerance (Internal) |
|
-50°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t ≦ 200°C |
±2.5°C |
AT-20■
|
Temperature range |
Tolerance (Internal) |
|
-50°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t ≦ 300°C |
±2.5°C |
AT-30■ / AT-40■
|
Temperature range |
Tolerance (Internal) |
|
-50°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |
|
|
