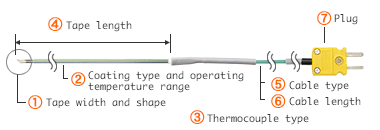

Tape width and shape |
1 |
Standard type : Sharp |
|
2 |
Standard type : Flat |
|
3 |
Narrow type : Sharp |
|
4 |
Narrow type : Flat |
|
|
Coating type and
operating
temperature range |
1 |
Low temperature : Teflon coating (open) |
|
2 |
Low temperature : All teflon coating |
|
3 |
High temperature : Polyimide coating (open) |
|
4 |
High temperature : All polyimide coating |
|
350°C if the tape length exceeds 150mm. |
|
|
Thermocouple |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Tape length |
003 |
30mm |
|
005 |
50mm |
|
008 |
80mm |
|
010 |
100mm |
|
… |
…… |
|
200 |
2000mm |
|
|
Cable type
see cable page |
TS |
For ST- ＊1, ST- ＊2 |
|
GW |
For ST- ＊3, ST- ＊4 |
|
0 |
Without cable |
|
|
Cable length |
1 |
1000mm |
|
1.5 |
1500mm |
|
2 |
2000mm |
|
… |
…… |
|
No cable if the cable type is "0." |
|
|
Plug
see plug page |
ANP |
|
|
ASP |
|
|
W |
|

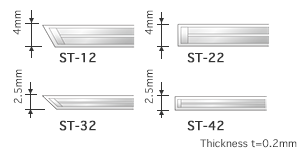

Tape width and shape
You can choose junction from as below.
Tape width : Standard type
 .
Tape width : Narrow type
 .
Coating type
You can choose coating type as below.

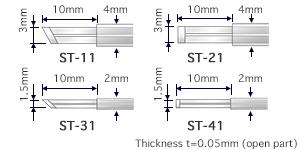

Low temperature : Teflon coating (Open)
ST-＊1 Temp.range : -50 to 210°C
Low temperature : All teflon coating
ST-＊2 Temp.range : -50 to 210°C

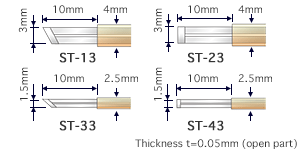

High temperature : Polyimide coating (Open)
ST-＊3 Temp.range : -50 to 400°C
Max. temperature of 350℃ when the tape length exceeds 150mm
High temperature : All polyimide coating
ST-＊4 Temp.range : -50 to 400°C
Max. temperature of 350℃ when the tape length exceeds 150mm
Tape length
You can choose tape length as below.
|
003 : 30mm |
030 : 300mm |
080 : 800mm |
|
005 : 50mm |
035 : 350mm |
090 : 900mm |
|
008 : 80mm |
040 : 400mm |
100 : 1000mm |
|
010 : 100mm |
045 : 450mm |
150 : 1500mm |
|
015 : 150mm |
050 : 500mm |
200 : 2000mm |
|
020 : 200mm |
060 : 600mm |
|
|
025 : 250mm |
070 : 700mm |
|
Specifications
|
Tolerance |
Open : ±2.5°C (at 100°C)
All coating : ±2.5°C (at 100°C) |
|
Response time |
Open : 2.0 s
All coating : 8.0 s |
|
Durability rank |
S |
Attention
Where the probes are not glued or inserted, the operating temperature limits as follows:
|
|
ST-＊1 |
ST-＊2 |
ST-＊3 |
ST-＊4 |
|
Tape ≦ 150mm |
200°C |
180°C |
200°C |
200°C |
|
Tape > 150mm |
200°C |
180°C |
180°C |
180°C |
Tolerance
＊ : Number
■ : Thermocouple type K or E
t : Measured temperature
ST-＊1■ / ST-＊2■
|
Temperature range |
Tolerance (Internal) |
|
-50°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t ≦ 210°C |
±2.5°C |
ST-＊3■ (Tape length ≦ 150mm)
ST-＊4■ (Tape length ≦ 150mm)
|
Temperature range |
Tolerance (Internal) |
|
-50°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 400°C |
±(0.0075╳|t|)°C |
ST-＊3■ (Tape length > 150mm)
ST-＊4■ (Tape length > 150mm)
|
Temperature range |
Tolerance (Internal) |
|
-50°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 350°C |
±(0.0075╳|t|)°C |
|
