Head size |
1 |
φ 27mm |
|
2 |
φ 15mm |
|
3 |
φ 12mm |
|
|
Guard material |
1 |

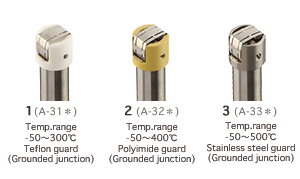

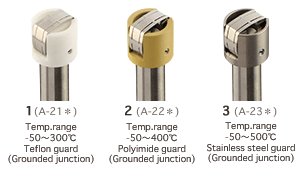

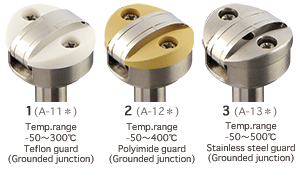

Teflon guard |
|
2 |
Polyimide guard |
|
3 |
Stainless steel guard |
|
4 |

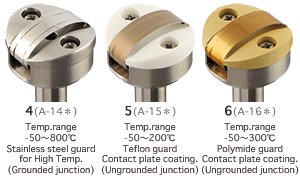

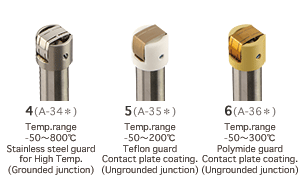

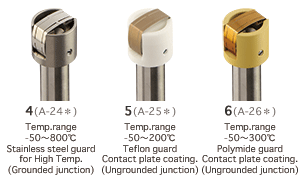

Stainless steel guard for High Temp. *1 |
|
5 |
Teflon guard contact plate coating |
|
6 |
Polymide guard contact plate coating |
|
7 |
Without guard (only A-1＊＊) |
|
|
Pipe angle |
1 |
Straight |
|
2 |
45 degrees |
|
3 |
90 degrees |
|
4 |
90 degrees (elbow) |
|
5 |
45 degrees *2 |
|
6 |
90 degrees *2 |
|
7 |
90 degrees (elbow) *2 |
|
|
Thermocouple |
K |
Type K |
|
E |
Type E |
|
|
Pipe length |
00 |
30mm *1,*3 |
|
01 |
100mm |
|
02 |
200mm |
|
… |
…… |
|
09 |
900mm |
|
10 |
1000mm |
|
|
Grip type |
0 |
No grip *1,*3 |
|
1 |
Standard grip |
|
|
Cable type
see cable page |
TC |
φ4 Silicone rubber cable |
|
|
Cable length |
1 |
1000mm |
|
1.5 |
1500mm |
|
2 |
2000mm |
|
2.5 |
2500mm |
|
… |
…… |
|
|
Plug
see plug page |
ANP |
Miniature plug |
|
ASP |
Anritsu standard plug |
|
W |
Without plug |
|
WT3 |
Spade terminal for φ3mm |
|
WT4 |
Spade terminal for φ4mm |
|
WT5 |
Spade terminal for φ5mm |
|
WC3 |
Ring terminal for φ3mm |
|
WC4 |
Ring terminal for φ4mm |
|
WC5 |
Ring terminal for φ5mm |
*1 Not manufacturable (A-＊4＊■-00-0)
*2 Contact plate direction of right angle.
*3 Not manufacturable (A-＊＊2■-00-0, A-＊＊3■-00-0
A-＊＊4■-00-0,A-＊＊5■-00-0, A-＊＊6■-00-0, A-＊＊7■-00-0)

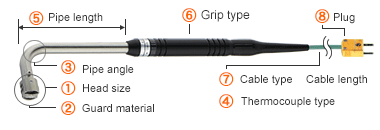

Head size

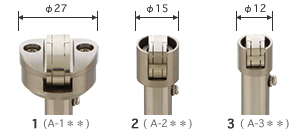

You can choose head size as below.
 Guard material
You can choose guard material as below.
Pipe angle
You can choose pipe angle as below.
Pipe length
Pipe length means each L.
Grip type
0 No grip
1 Standard grip
|
No grip |
For device, system, auto-machines,mechanical system etc |
|
Standard |
For handheld measurement |
Specifications
|
Tolerance |
±2.5°C (at 100°C surface) |
|
Response time |
1.5 s
3.5 s in the case of coated element
(A-＊5＊, A-＊6＊) |
|
Durability rank |
A |
Tolerance
＊ : Number
■ : Thermocouple type K or E
t : Measured temperature
A-＊1＊■
|
Temperature range |
Tolerance (Surface) |
|
-50°C ≦ t ≦ 300°C |
±2.5°C |
A-＊2＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 400°C |
±(0.0075╳|t|)°C |
A-＊3＊■ / A-17＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |
A-＊4＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |
|
500°C < t ≦ 700°C |
±(0.015╳|t|)°C |
|
700°C < t ≦ 800°C |
±(0.02╳|t|)°C |
A-＊5＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t < 125°C |
±2.5°C |
|
125°C ≦ t ≦ 200°C |
±(0.02╳|t|)°C |
A-＊6＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t < 125°C |
±2.5°C |
|
125°C ≦ t ≦ 300°C |
±(0.02╳|t|)°C |
|
